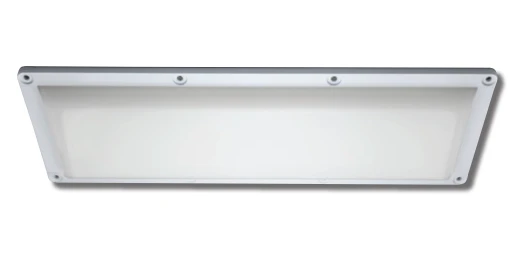

Shat-R-Shield Lighting Ironclad Linear Pro Tamper-Resistant Large Area LED Lighting Fixture For Correctional Facilities

• Safety features:
  • Anchored flush onto ceiling with 8 spike anchors or optional recessed tamper-proof 1/4” stainless steel bolts or cinder block fasteners
  • Extreme durability – hammer & knife tested
  • No parts to cut into with weapons & tools
  • No areas to hide or conceal contraband
  • Damp location rated
  • No accessible parts or hinges
• Features:
  • Wattage: 40W or 80W
  • CCT: 4000K or 5000K
  • Mount Type: Center Mount (CM)
  • Night light/count light: optional (Y/N)
  • Voltage: 120V-277V

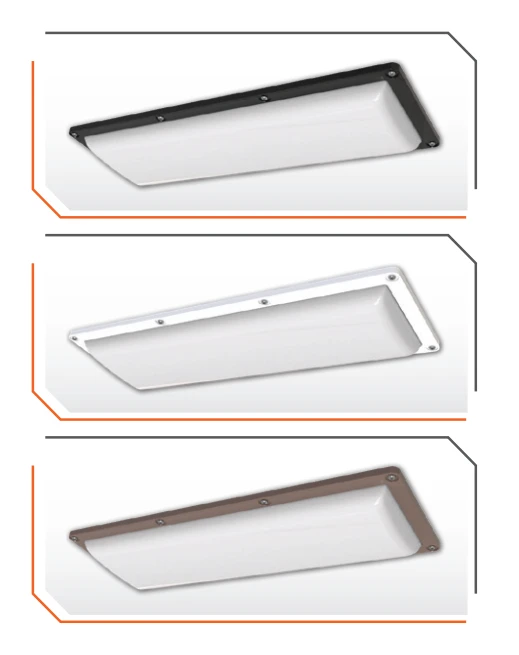

  • Frame Material: Powder Coat White (S2) (also available in Powder Coat Black (S1) or Brown (S3))
  • Lens Type: Urethane (UR)
  • Optional accessories (additional charges may apply): spike anchors, tamperproof bolts/inserts, cinderblock fasteners, metal ceiling screw, 14 ga. surface box kit, 14 ga. corner box kit, 1′ WIP, corner box kit (3/8 mounting holes), horizontal plate, handicapped plate, vertical plate, angled plate, touch switch
• Fixture construction:
  • One piece frame .500” thick steel, epoxy powder coated
  • Lens – .500” thick cast, diffused translucent, Highly engineered urethane.  Shore hardness D80+, tensile strength 5,400 psi, impact strength 55 in. lbs./ in.
  • Aluminum heat sink to maintain thermal management
• Specifications:
  • Lumens: 4200 (40W), 8400 (80W)
  • Count Light Lumens: 530
  • Light Engine CCT: 5000K, 4000K
  • Count Light CCT: 2700K
  • Life Hours: L70>75,000 hrs; Projected >100,000 hrs
  • Footcandles: 35 ftc at the desk level; 22 ftc at the floor
  • Voltage: Universal 120-277V
  • Weight: 13.8 lbs.

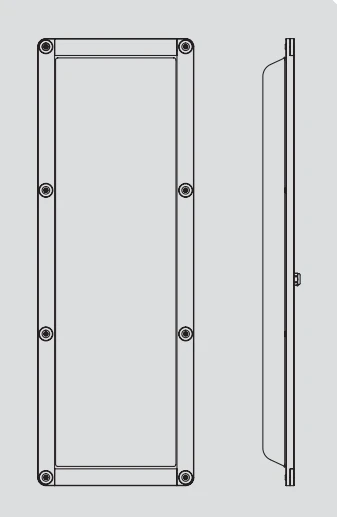

  • Dimensions: 25.8” long x 9” wide x 1.8” tall
• Warranty: 5 year limited warranty
• Certifications: cULus, UL Damp Location, IK10 Impact Rating
• Manufactured in America with globally and domestically sourced components

Part of Shat-R-Shield’s Heavy Duty Series: LED fixtures designed for extreme abuse in the most rugged environments within any correctional or institutional facility.

About Shat-R-Shield Lighting
Shat-R-Shield provides specialized lighting products for correctional, behavioral and other institutions with harsh environments that require durable lighting, including prisons, jails, detention centers, correctional facilities, school gyms, and behavioral healthcare facilities.
