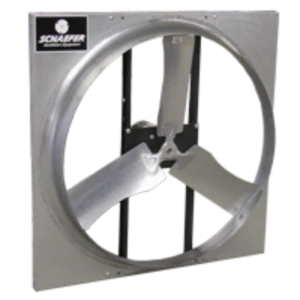

Schaefer 363P12DD-3 36″ Galvanized Direct Drive Panel Fan

Schaefer’s galvanized steel panel fans combine low cost, high airflow and high air speeds for very high ROI livestock cooling. These circulatory fans are designed for agricultural livestock buildings requiring large volumes and velocities of air with a belt driven preference. Regardless of application, free stall barns, feed lines or holding pens, Schaefer offers a wide variety of galvanized panel fans to meet your specific needs. Heavy duty fan ships fully assembled, complete with belt tensioner.

Features of the Schaefer Ventilation Galvanized Steel Panel Fan series of Circulation Fans:

• Industry leading airflow and efficiency with airflows up to 40,000 cfm and efficiencies up to 40 cfm/watt
• Lab tested design for maximum performance and quiet operation
• Heavy gauge galvanized and powder coated steel components
• Thermally protected TEAO motors for long life
• Optional post and column mounts available
• Available in 24″, 36″, 48″, 52″ and 54″ sizes
• 3-wing or 5-wing blade style
• Two year warranty
• Made in the USA

Specific Features of Schaefer model 363P12DD-3 36″ Galvanized Direct Drive Panel Fan:

• Air Velocity (@ 5 times diameter):910
• BESS Lab Performance Test No.:8052
• Blade Color:Gray
• Blade Material:Galvanized Steel
• CFM (free air):13870
• CFM (high):13870
• CFM Calculation Standard:ANSI/AMCA Standard 230-99
• CFM Range (Free Air):15001 – 20000
• CFM/Watt (free Air):32.3
• Component Certifications:Motor – UL/CSA
• Cord:Not included
• Country of Origin:US
• Diameter (inches):36
• Drive Type:Direct
• Fixed or Portable:Fixed
• Frequency (Hz):60
• Housing Color:Gray
• Housing Material:Galvanized Steel
• Mount Type Recommended:PANELPM-UKIT
• Nameplate Amps:2.3/1.2
• Number of Wings:3
• Oscillating:No
• Phase:3
• Power (hp):1/2
• Power (Voltage Phase):230/460 Three Phase
• Product Color:Gray
• Product Weight (pounds):75
• Speed Control Compatible:No
• Speeds:1
• VFD Compatible:No
• Voltage:230/460

About Schaefer Ventilation Equipment:
Schaefer Ventilation, a division of Pinnacle Climate Technologies, is a leading manufacturer of high quality climate control systems for a wide range of commercial, industrial, and agricultural applications. Schaefer Ventilation Equipment is best known for making top quality air circulation fans, portable cooling fans, portable air conditioners, confined space ventilators, exhaust shutter fans, evaporative cooling and misting systems, electric and gas indoor and outdoor radiant heaters, fixed and portable heaters.

Shipping Shipping cost TBD – Contact Us For Freight Quote
